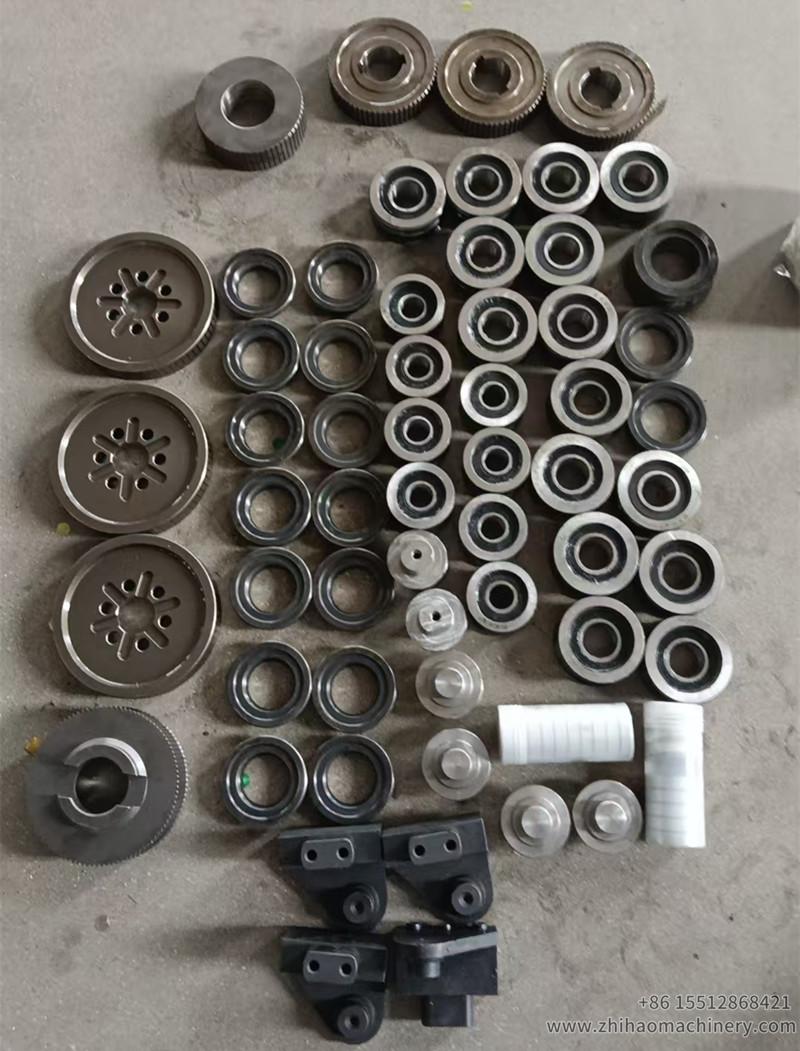

straightening wheels for cnc automatic stirrup rebar bending machine

Full sets wheels, supply for Australia customer. Model KT6 with Excellent working performance. Max bending diameter to 16mm.

Can customzied as customer different request.

Advantages:

1. CNC control, the machine can process more than 500 types stirrup.

2. Bend in two directions and two end bend, meet you various need.

3. Large Inclined plane design can process maximum 2000*2000mm big size.

4. Widened machine body, more stable when working.

5. INVT brand servo motor, guarantee high quality of machine.

Technical parameter of stirrup bending machine KT6:

Single wire bending 5-16mm

Total power 67kw

Double wire bending 5-12mm

Weight 3000kg

Bending angle ±180°

Average power comsuption 12kw/h

Max traction speed 75m/min

Bending direction Double direction

Max bending speed 1000°/s

Productivity 2200-2400pcs /h

Angle precision ±1°

Additional function Two end bend Length

precision ±1mm

Certificate ISO /CE

Size 4000*2000*2200mm

Optional item collector and decoiler

FAQ:

Q1: Can you make the English language or other language of the CNC control system for the customers?

A1: Of course. We can make different language for the cnc control. Just tell us which language you need.

Q2: Can you change the machines color for the customers?

A2: Yes. We can make the color as what you want.

Q3: What is the life of the rollers and blades and what is the cost to buy more spares?

A3: The straightening roller can process 3000T steel bar, feeding roller can process 1000T steel bar.

Q4: You will send your engineers on your cost for the installation of the machine?

A4: We can arrange our engineers to your city to install the machine if necessary.

Q5: What is the warranty and guarantee of the machine?

A5: Warranty and guarantee of the machine is 12 month. During 1 year, we can supply all the spare parts for free (not including

the quick-wear part).

Q6: Are you a factory?

A6: Yes, we are. And we sincerely welcome to visit out factory at any time.

Our company on Xingtai city Hebei province, you can by high speed train to Xingtai east station or by airplan to Shijiazhuang

zhengding internations airport. We will pick up you go to train station.

If have any interesting for stirrup rebar bending machine, pls contact me freely.

Email: sales@zhihaomachinery.com

Whatsapp/wechat: +8615512868421
